Configure Stripe Payments in Elite



Learn how to configure Stripe as a payment processor in Point of Rental Elite. This article guides you through launching Admin Configuration, adding Stripe via the Payment Processor Wizard, verifying store setup, and configuring payment terminals to ensure your locations can process credit card and ACH payments successfully.



Topics Included in This Article



Launch Admin Configuration from Elite

Follow these steps to access Global Setup in Elite.

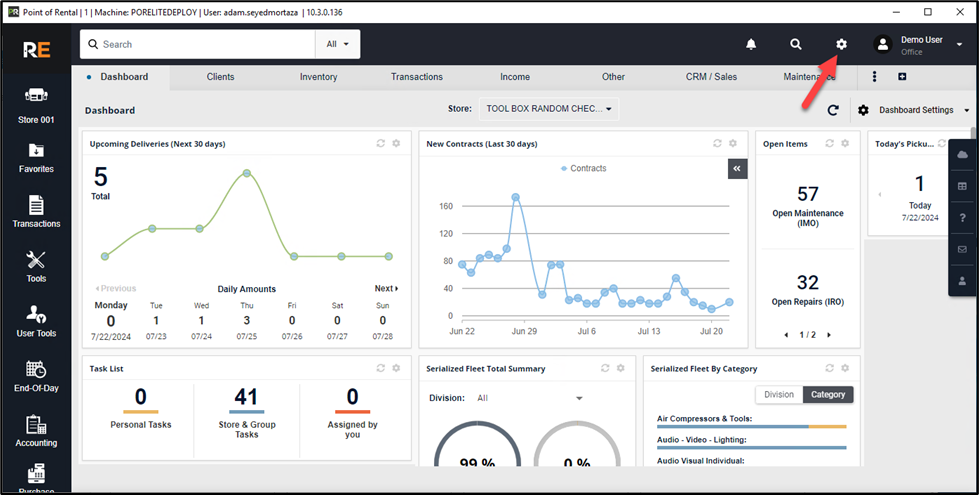

  1. Click the Gear icon in Elite.

           Alt text: Gear icon in the Elite top menu

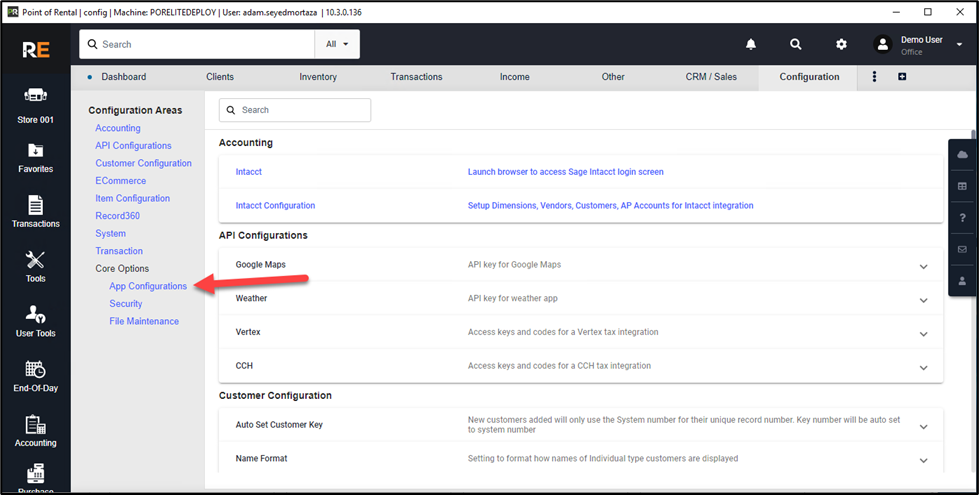

        2. Select App Configurations.

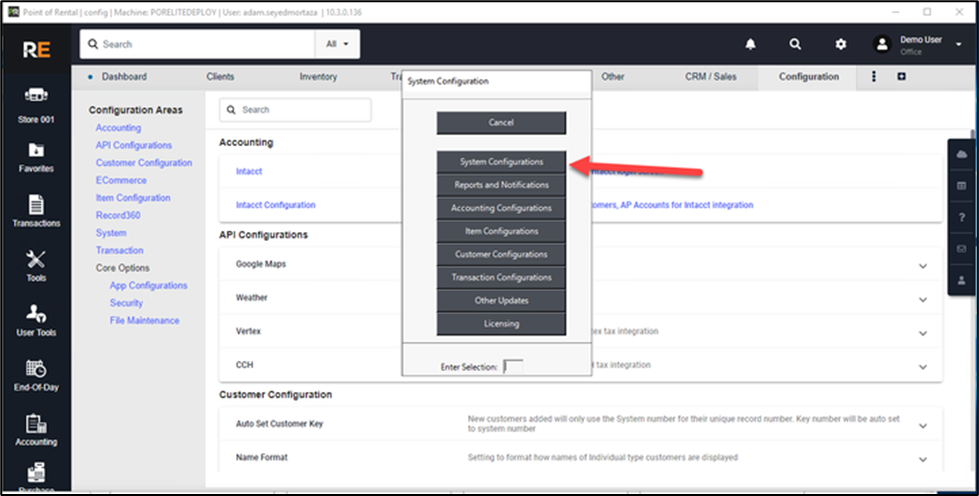

        3. Select System Configurations.

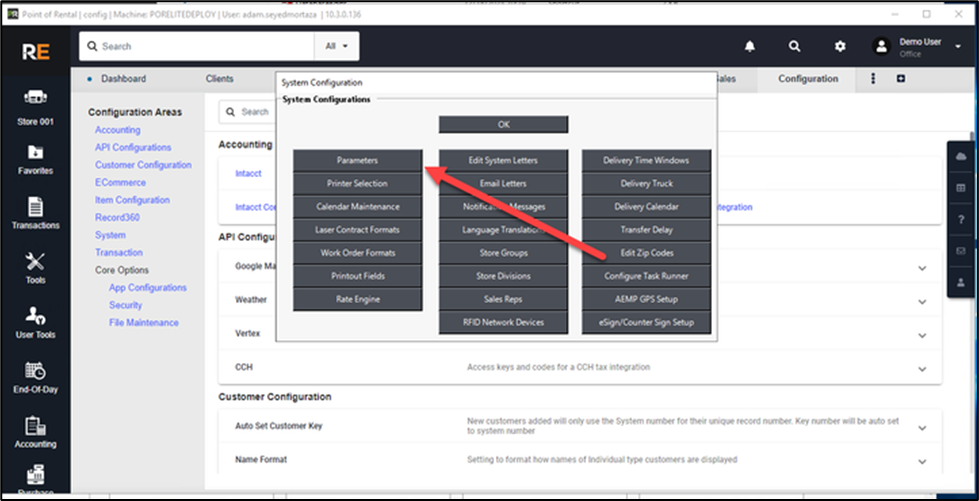

        4. Click Parameters.

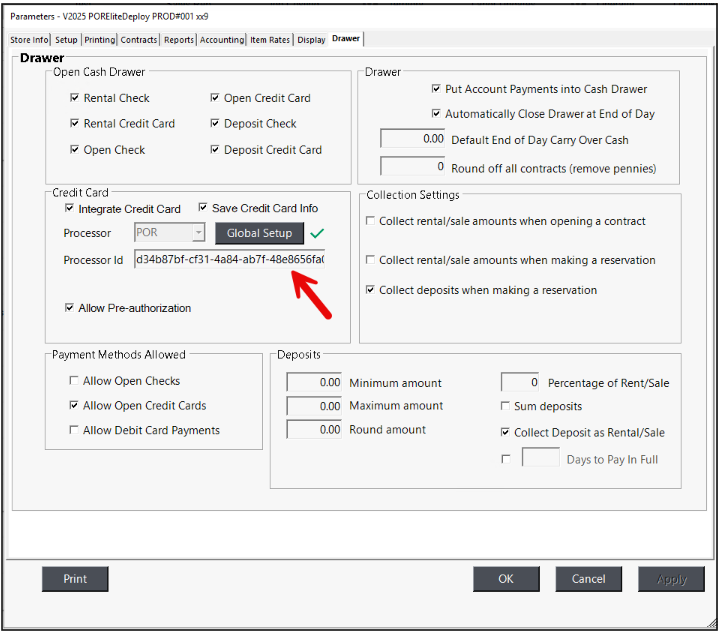

        5. Select the Drawer tab, then choose Global Setup.
            Alt text: Drawer tab with Global Setup selected





Add Stripe Using the Payment Processor Wizard

Use the Payment Processor Wizard to add Stripe as a merchant (processor account).

Important: If a Cayan payment processor is already configured, you must add a new payment processor rather than editing the existing one.

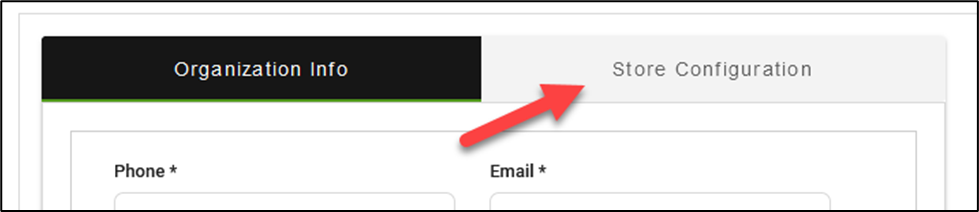

  1. From Global Setup, select the Store Configuration tab.

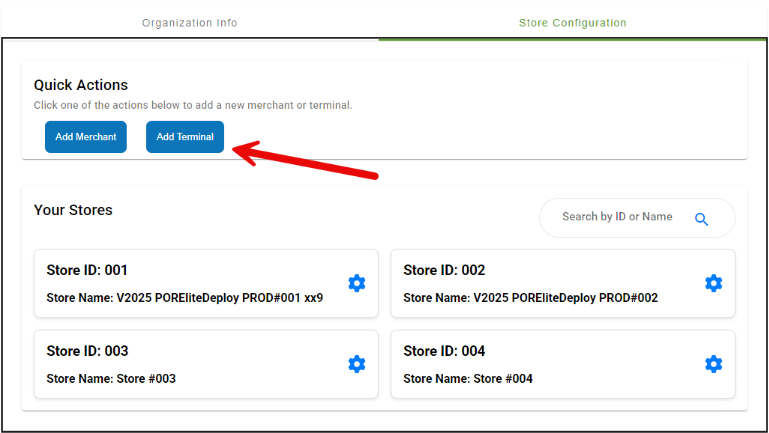

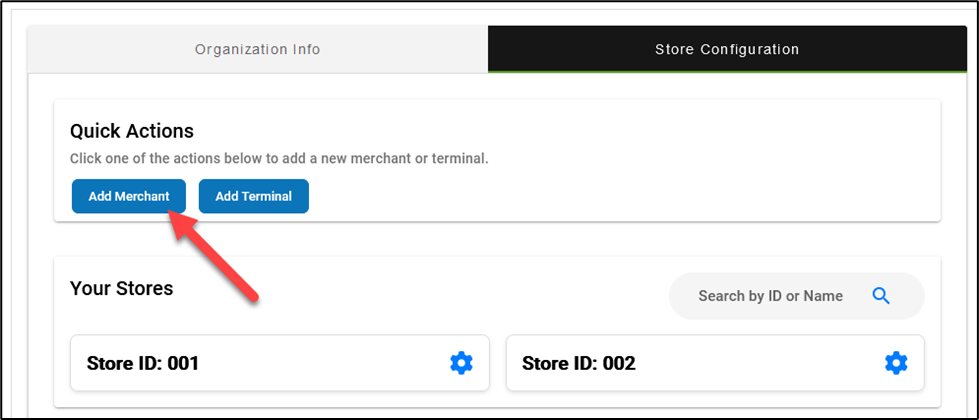

        2. Click Add Merchant (Processor).
         Note: “Merchant” refers to the payment processor account.

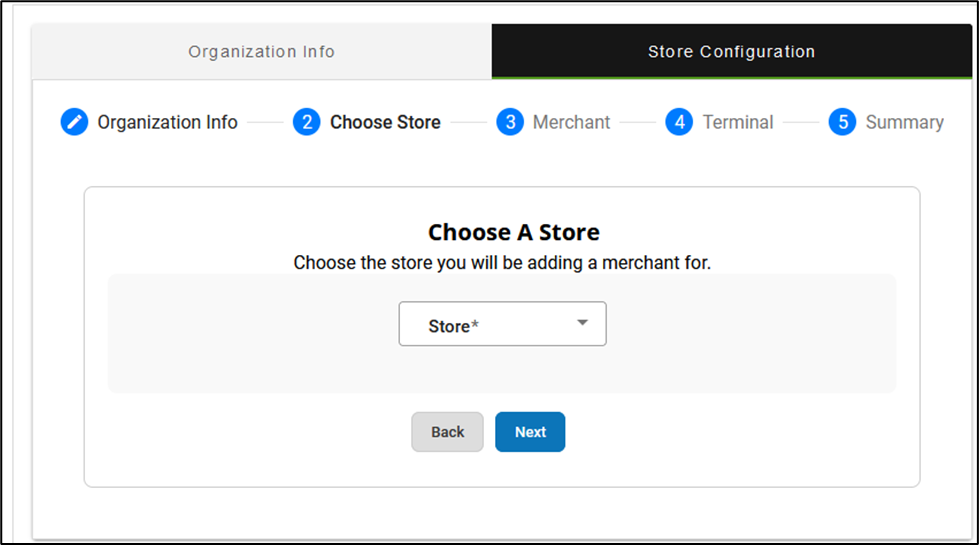

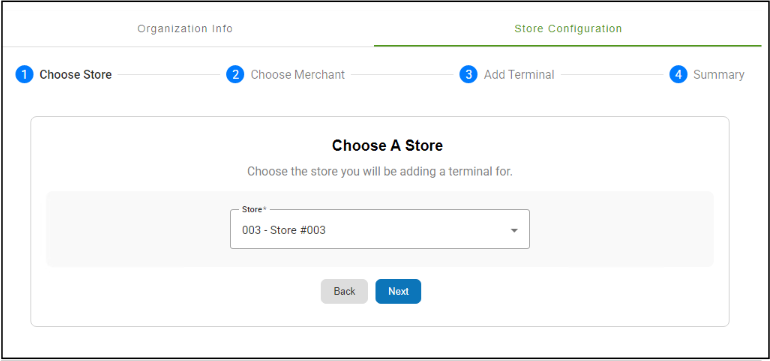

        3. Select the store/location from the dropdown where Stripe will be used, then click Next.
            Each location requires its own Stripe configuration.

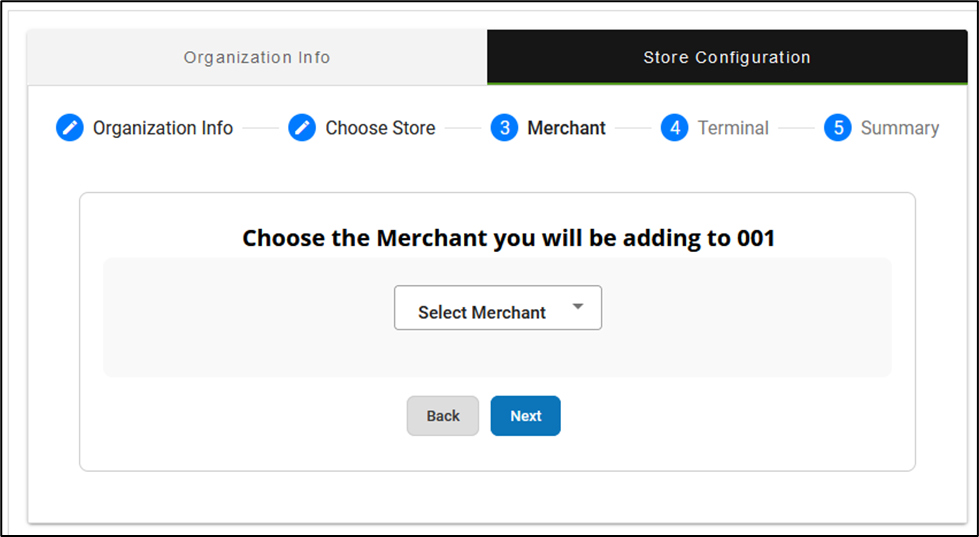

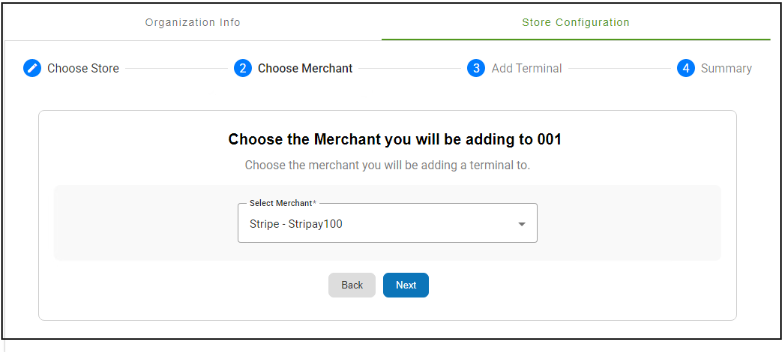

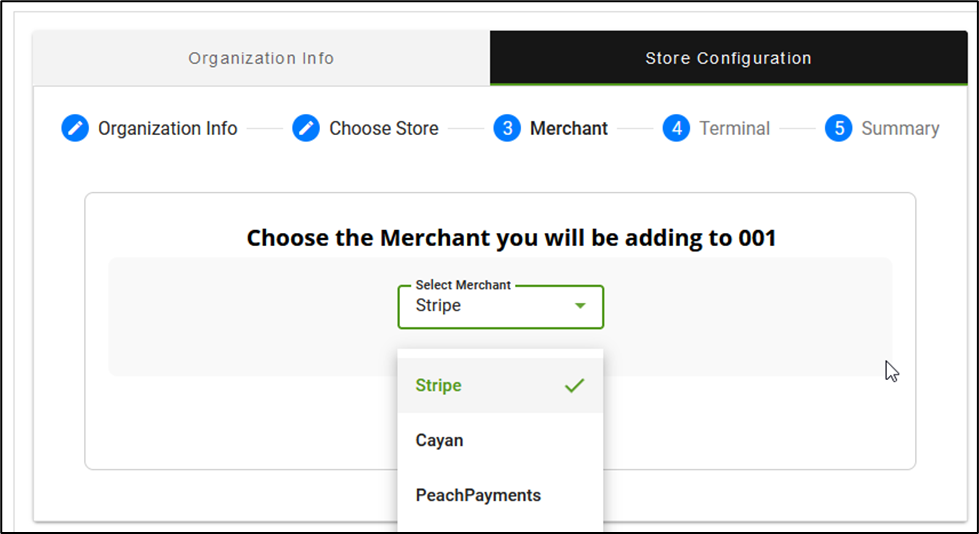

        4. Select Stripe from the merchant dropdown, then click Next.
        Alt text: Stripe selected in merchant dropdown

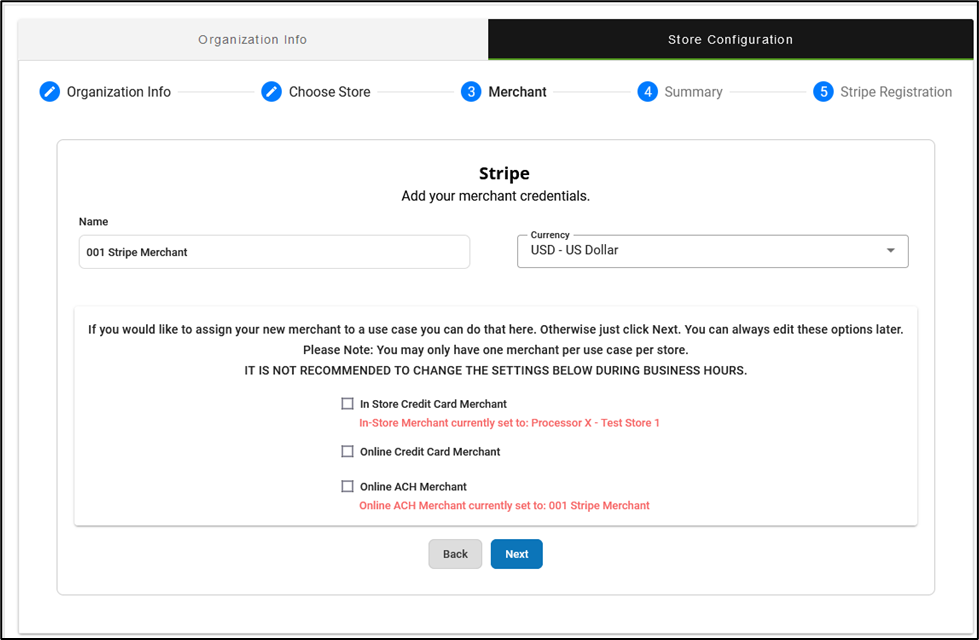

        5. Configure the merchant settings:

    • Update the Name to something identifiable (for example, Stripe – Dallas Location)
    • Set the Currency
    • Select one or more Use Case options:
      • In Store Credit Card Merchant – for RMS or physical terminals
      • Online Credit Card Merchant – for Storefront, ePay, Consumer Portal, or Quicklink
      • Online ACH Merchant (US only) – for ACH payments through online tools

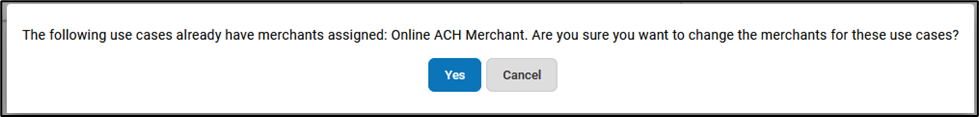

         6. If prompted that another merchant is already assigned as Online ACH Merchant, click Yes to proceed.

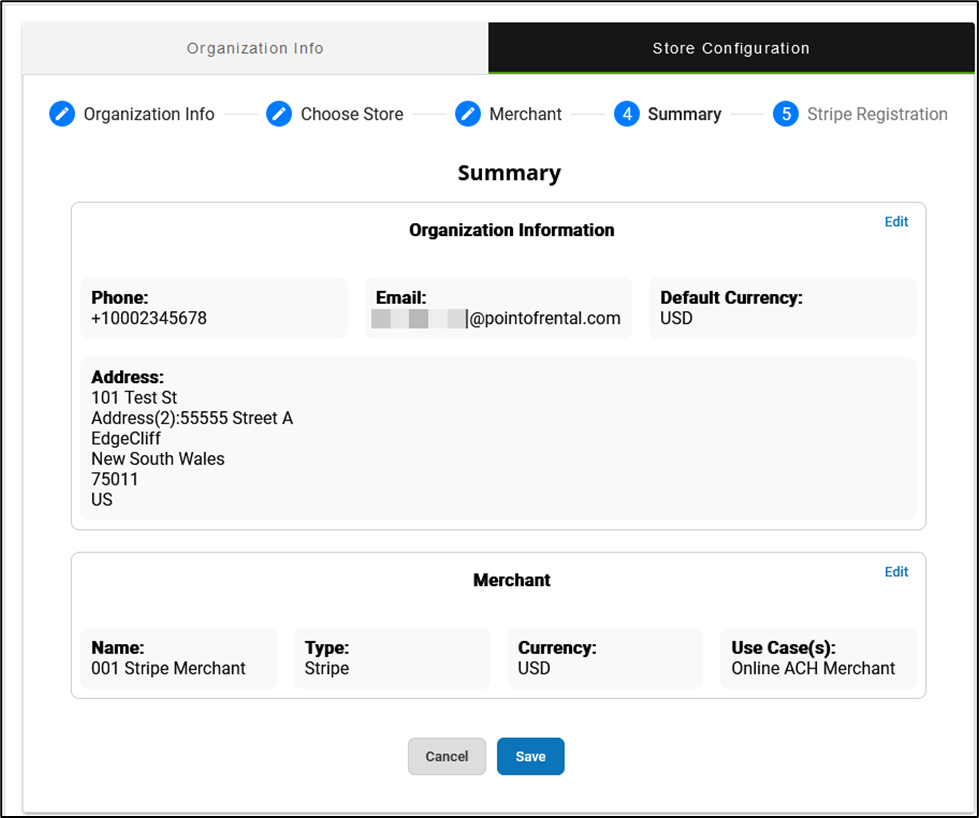

        7. Review the summary screen and click Save.





Register and Connect a Stripe Account

Customer action required for this section

  1. Click Finish Stripe Registration.

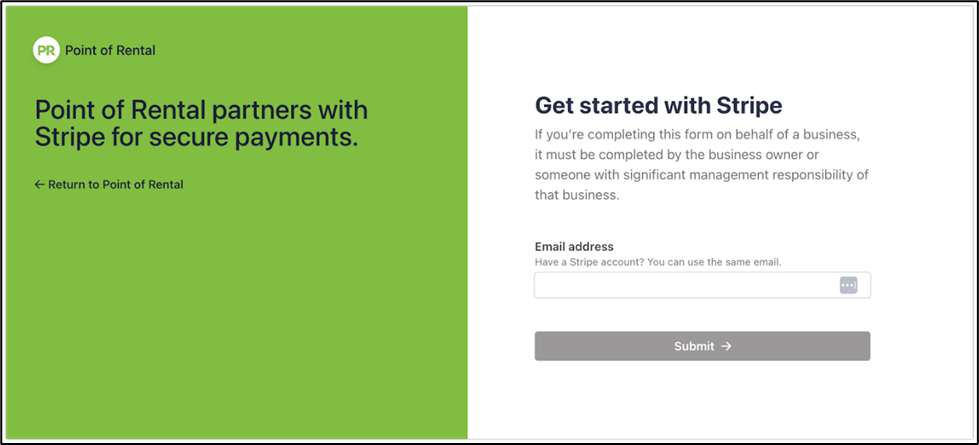

        2. In the Stripe portal:

    • Enter the email address associated with the Stripe account
    • Log in using existing credentials

        3. If the customer already has a Stripe account, select the saved credentials.



        Otherwise, follow the prompts to create a new Stripe account.
        Alt text: Stripe portal login screen

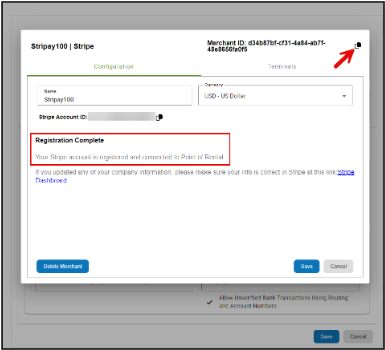

Verify Store Configuration

Confirm that Stripe is correctly assigned to the store.

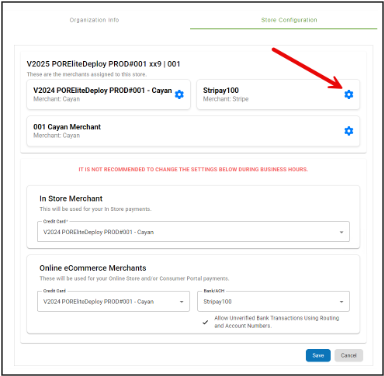

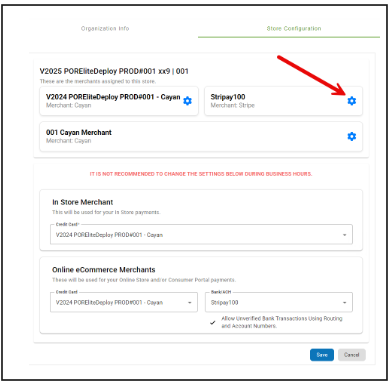

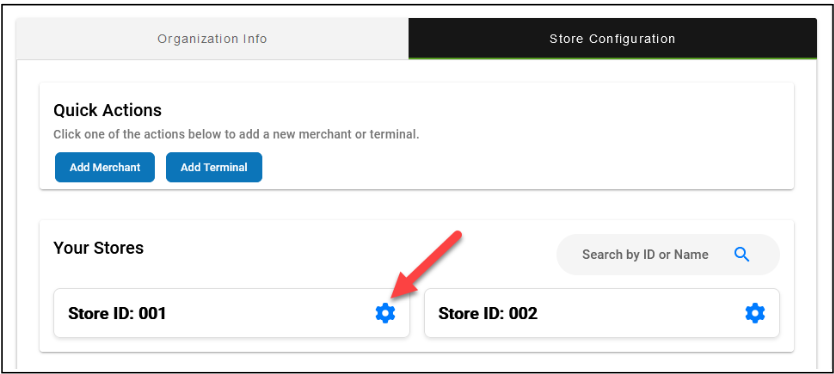

  1. In Global Setup under the Store Configuration tab, click the Gear icon next to the store you configured.
  2. Verify that the newly added Stripe merchant is selected as the store’s ACH merchant (if applicable).
    This should already be set based on the Use Case selected earlier.















Configure Payment Terminals

Complete terminal pairing before assigning terminals in Elite.

  1. Choose a Store.

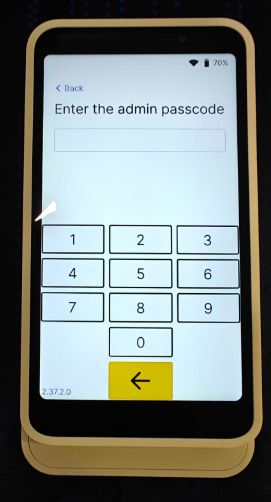

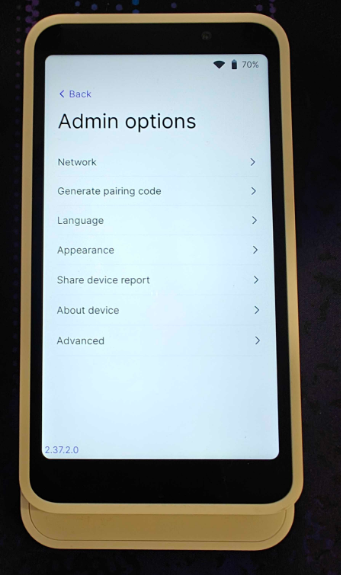

        2. On the payment terminal:

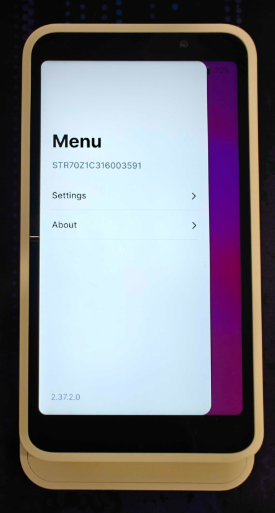

    • Swipe from the left side of the screen
    • Tap Settings
    • Enter 07139

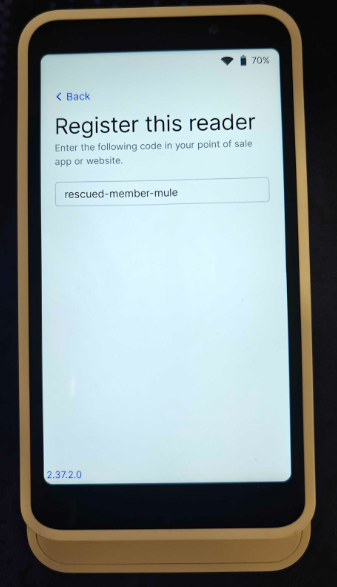

    • Tap Generate Pairing Code


Alt text: Payment terminal showing pairing code

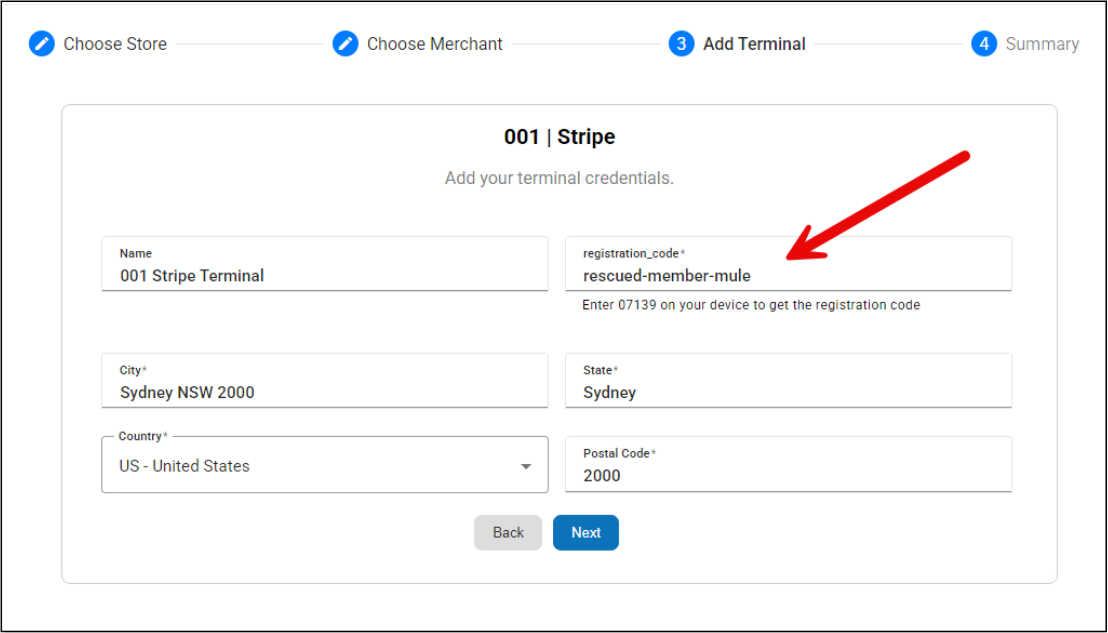

        3. In Elite, navigate to:
              Configurations > Core Options > Security > Verifone Terminals

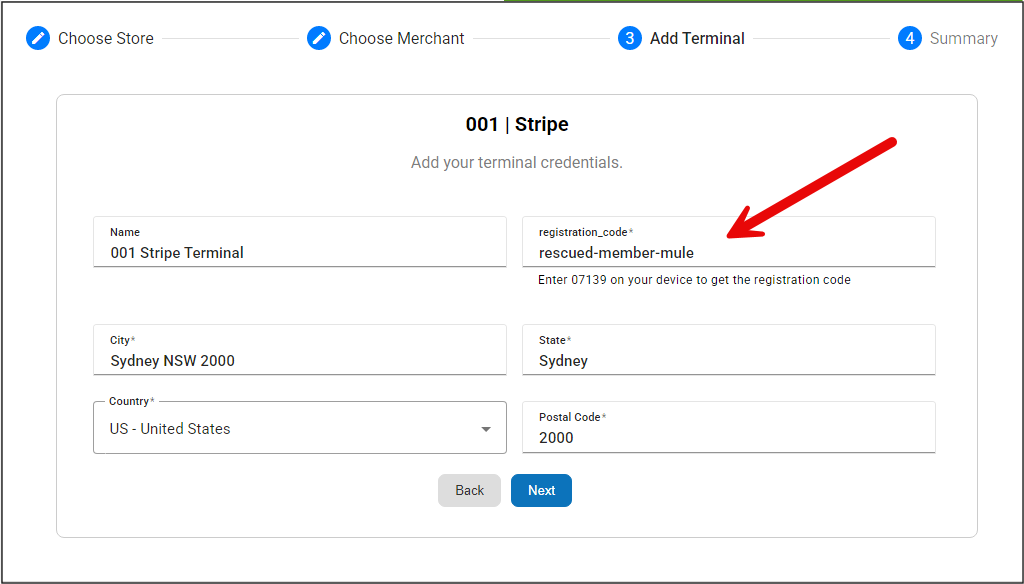

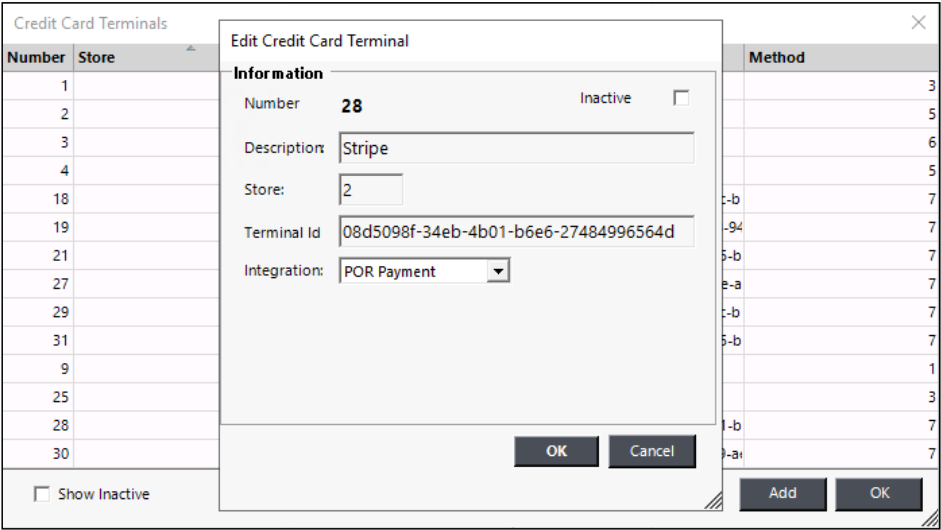

        4. Click Add, then:

    • Set Integration to POR Payment
    • Enter a Description (terminal name, store number)

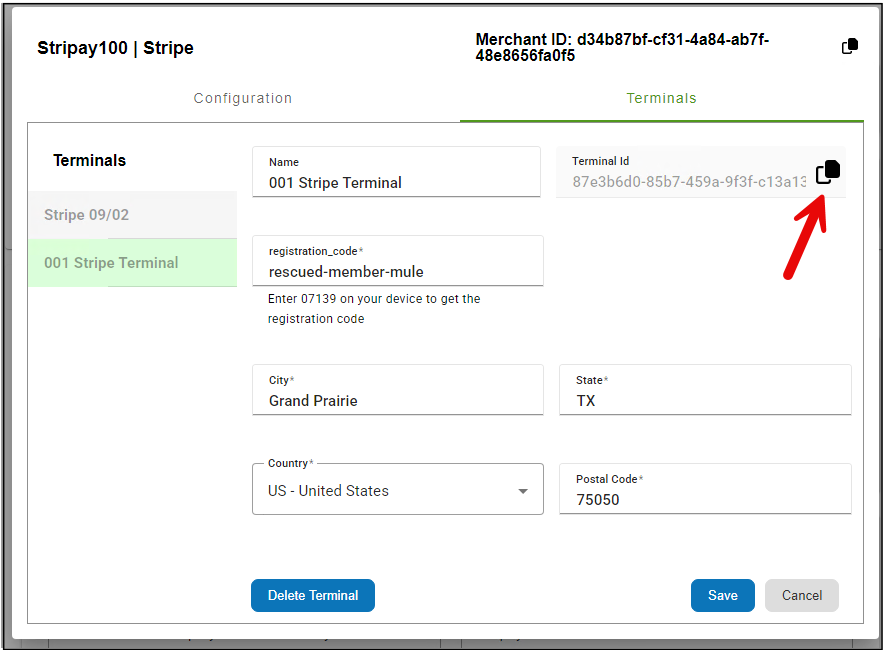

    • Enter the Terminal ID copied from the terminal setup screen











Assign Terminals to Users

After creating terminals, assign them to user profiles.

Assign as an Admin

  1. Go to Configurations > Core Options > Security > User Profiles.
  2. Open a user profile.
  3. In the Advanced tab, select the terminal from the Verifone Terminal dropdown.



Assign as an Individual User

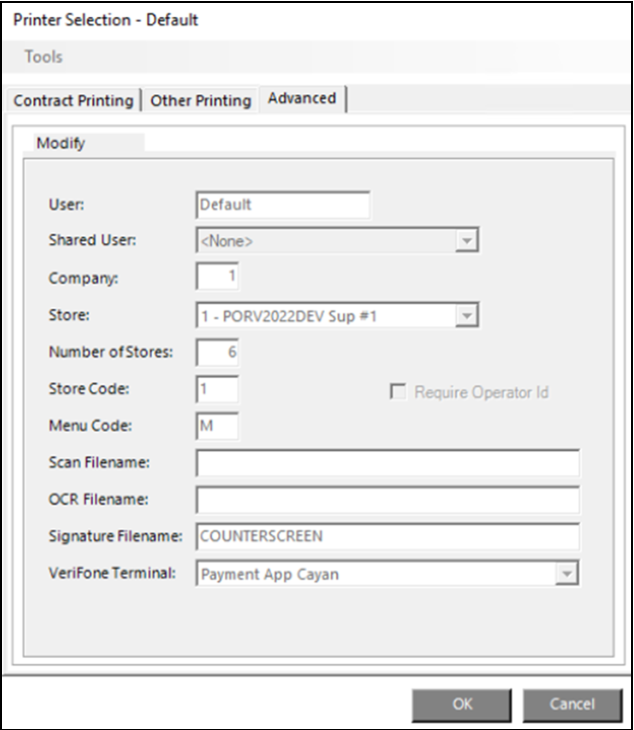

  1. Go to User Tools > Operator Information > Print Setup.
  2. Open the Advanced tab.
  3. Select the terminal from the Verifone Terminal dropdown.



More Information and FAQs

Q: Do I need to configure Stripe separately for each location?

Yes. Each store/location requires its own Stripe merchant configuration.

Q: Why don’t I see online payments in Consumer Portal or Quicklink?

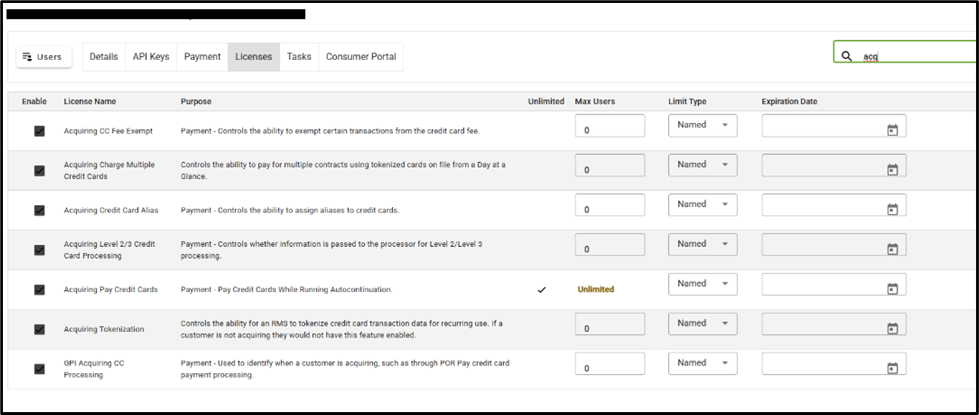

Online payments are only available if GPI Acquiring CC Processing is enabled.

Q: What if another ACH merchant already exists?

Elite will prompt you to replace it. Click Yes to continue if Stripe should be the active ACH merchant.

Q: Can one Stripe account be used for multiple stores?

No. Each location must complete its own Stripe setup and registration.

Stripe configuration is now complete for this store. Remember to repeat the Payment Processor Wizard and Store Configuration steps for each additional location.
